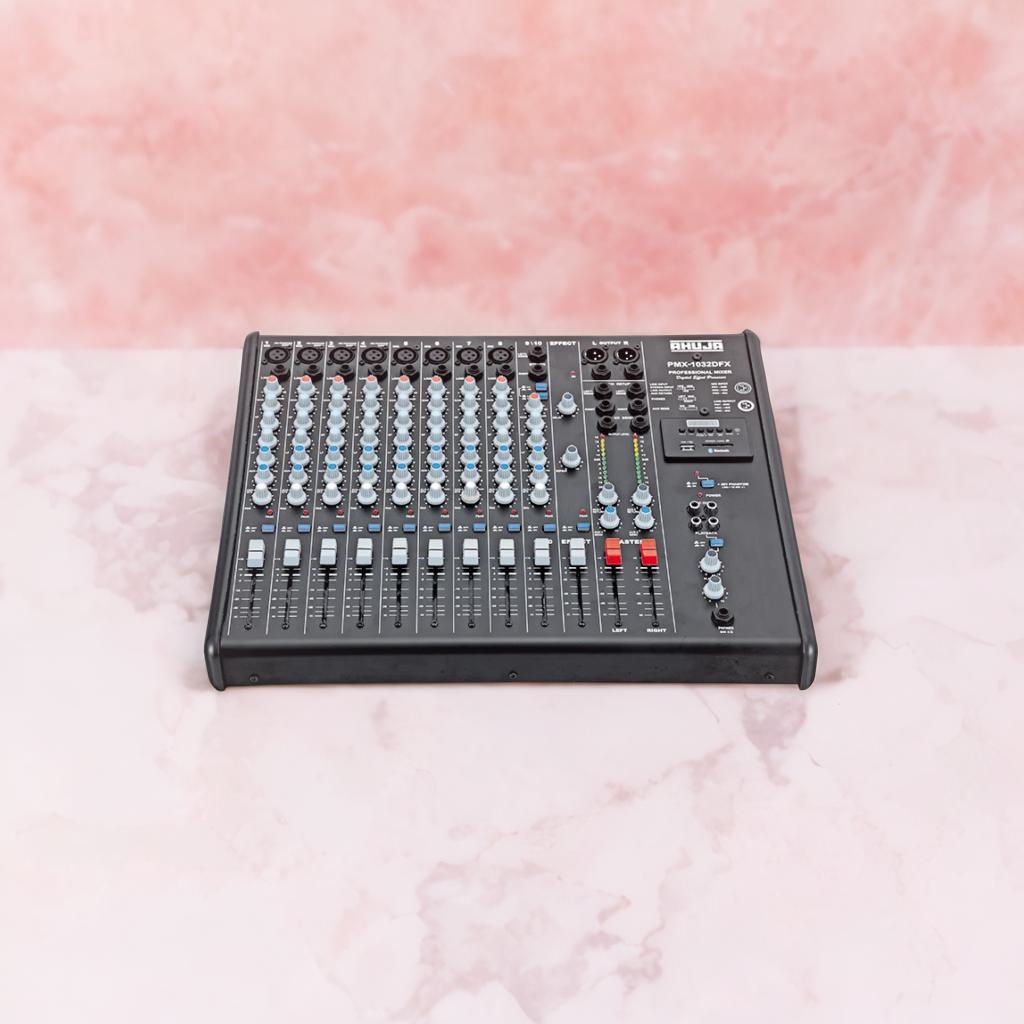

The Ahuja PMX-1032FX is a rugged, analog mixer featuring 8 balanced mono and 1 stereo input, plus a built-in MP3 player with USB/SD and Bluetooth. It offers 48V phantom power on four channels, onboard digital effects (delay, repeat, level), full channel EQ, slider faders, AUX sends/returns, headphone monitoring, and multi-output options—ideal for live sound setups.

• 8 x Balanced Mono Inputs. 1 x Balanced Stereo Input. XLR sockets for all Mic Inputs. Digital Effects with Delay, Repeat and Level controls. Built-in MP3 player with USB, SD/MMC Card reader and Bluetooth playback facility. Phantom Supply available on 4 channels.
• Ahuja introduces a high performance Professional PA Mixer PMX-1032DFX, which has 8 MIC/LINE input channels, 1 Stereo input channel and built in MP3 player. It is designed for exceptional sound quality & superior reliability in both monitoring and live sound applications.
• Rugged, reliable, high quality analog mixer with user-friendly construction & aesthetically designed side panels.
• Eight MIC/LINE Balanced Mono inputs with enhanced headroom.
• One STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
• Built-in MP3 player with USB, SD/MMC card reader and Bluetooth.
• Seperate EFFECT channel is provided for controlling the built-in digital effect processor through delay, repeat and level controls.
• All MIC inputs are through 3 pin F/XLR connectors.
• All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
• Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
• Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader AUX2 /EFX control & a PAN control.
• The STEREO channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
• Channel ON/OFF switch provided on each individual channel.
• Peak LED for signal clipping indication.
• High precision 60mm slide fader on each channel.
• Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
• Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
• Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
• Two stereo AUX RETURN balanced inputs with level controls.
• Headphone output with Level Control for output monitoring.
• Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
• Stereo Record output through L&R RCA sockets.
• Operates on 240V 50Hz AC mains.
